Technical Specifications
Built For Performance

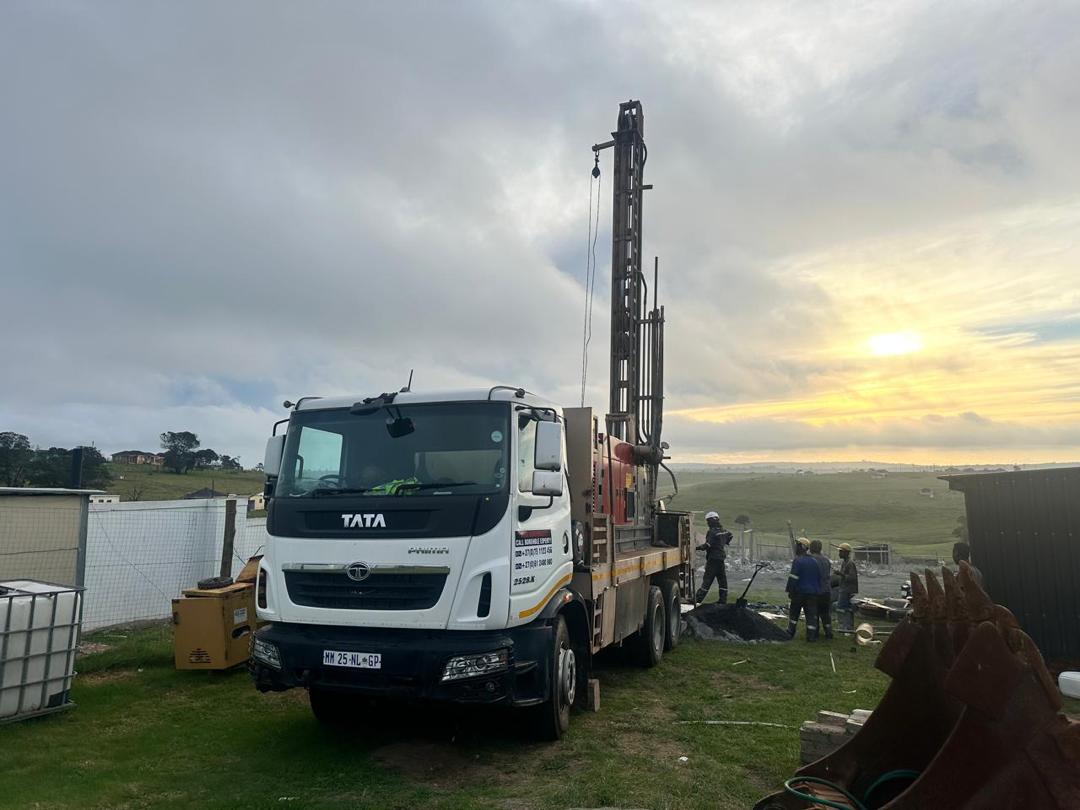

Heavy-duty truck-mounted water well drilling rig, capable of operating in both soft and hard geological formations. Equipment specifications are periodically updated. Please contact Everest directly for current equipment information.
Hole Diameter6.5" / 9" / 10" / 12"
Maximum Depth250 Metres
Rotary Head SpeedVariable
Maximum TorqueContact us
Max Pull-Up ForceContact us
Max Pull-Down Force7,500 kgs
Reeving Ratio1 : 3
Pull-Up Speed45 metres / min
Pull-Down Speed60 metres / min
Hydraulic PressureContact us
Hydraulic PumpsLoad Sensing
Oil Cooler Capacity70 gpm / 120 gpm
Breakout Winch Torque500 kg.m
Cylinder Bore80 mm / 100 mm
Stroke300 mm / 350 mm
Levelling Jacks4× Box-type hydraulic
Formation TypeSoft & Hard
Prime MoverTruck Engine / Customer Request
